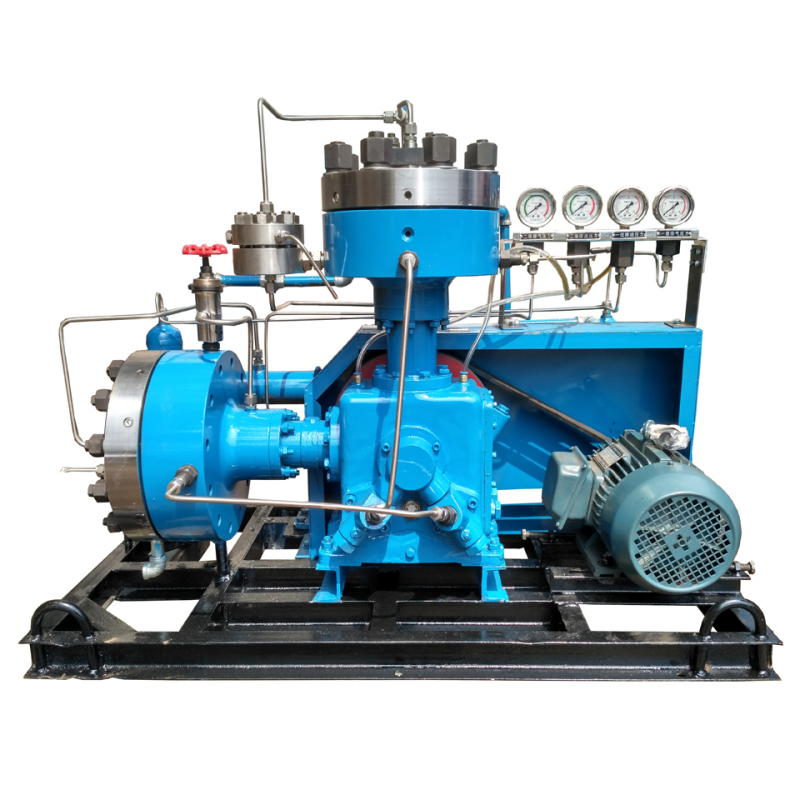

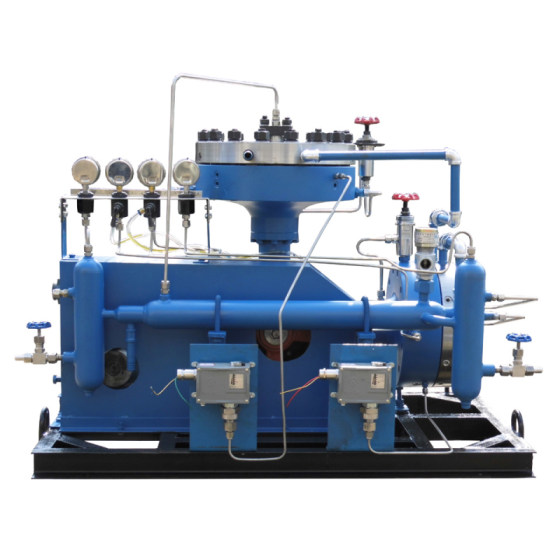

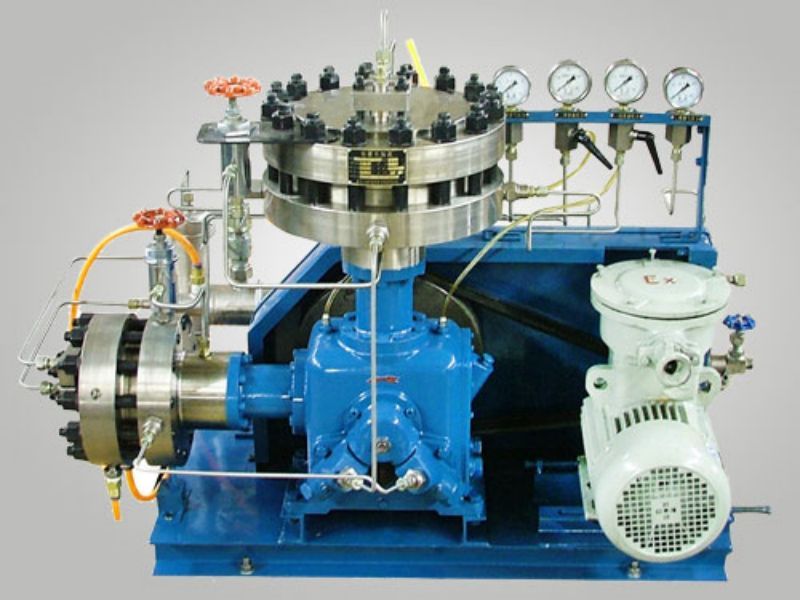

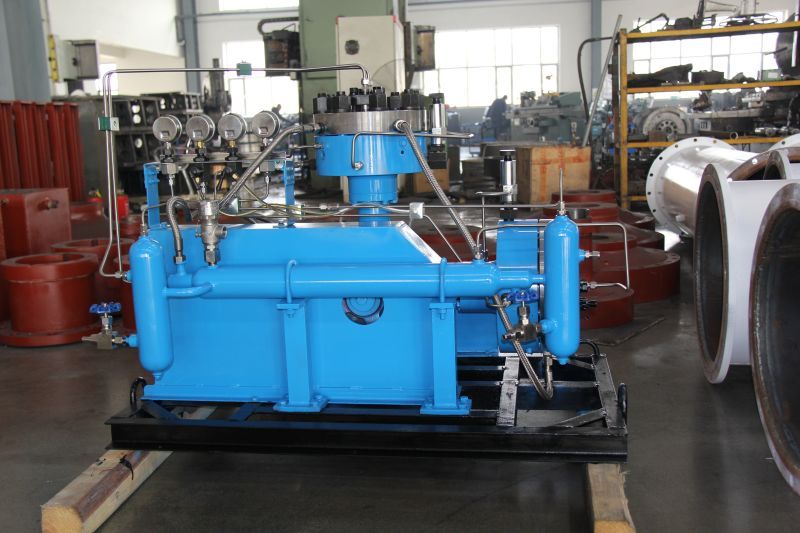

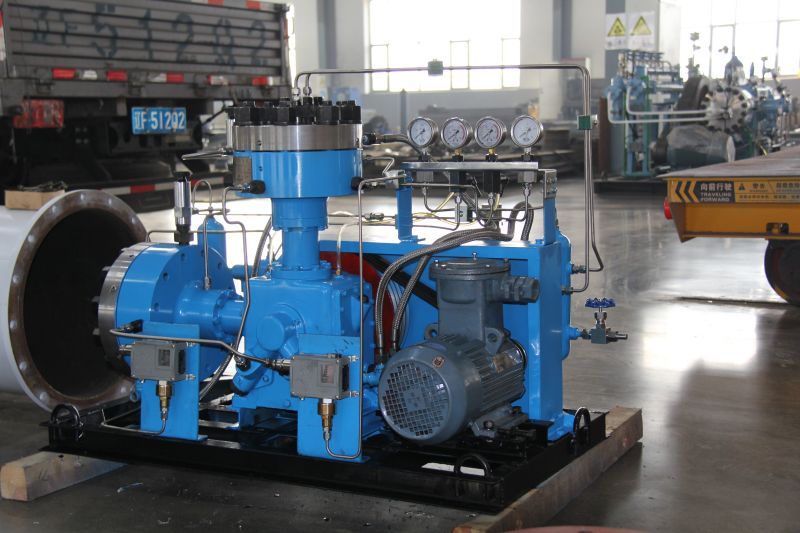

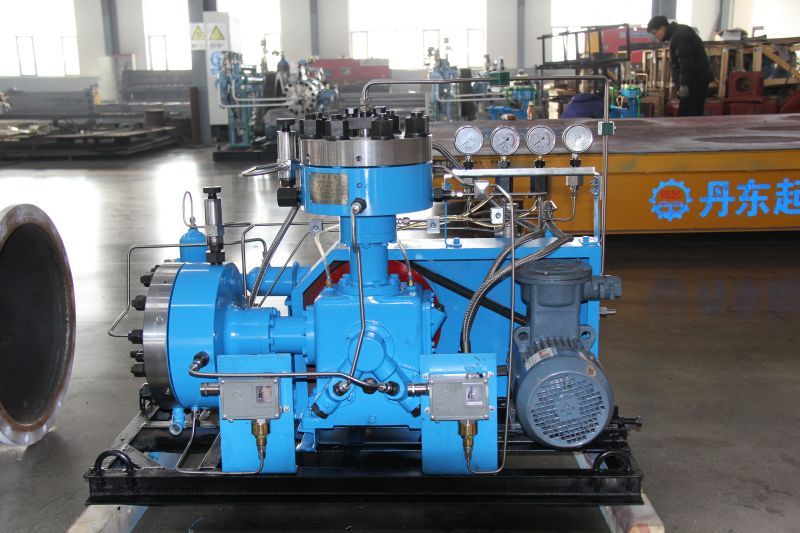

GL447 Series Diaphragm Compressor
1. The cylinder of Nitrogen diaphragm compressor has good heat dissipation, simple and efficient structure.
2. The two-stage compression of the Nitrogen diaphragm compressor can achieve high pressure and can also approach isothermal compression.
3. Nitrogen diaphragm compressors are widely used in industrial gases, food and medicine, petrochemical industry, aviation nuclear power, military equipment, scientific research and testing and other fields.
- Dandong City, Liaoning Province
- 2 months
- 18 units/month
- Information
Introduction to GL447 Series Diaphragm Compressor:
Industrial diaphragm compressor is a special structure positive displacement compressor. The cylinder does not need lubrication and has good sealing performance. The compressed medium does not contact any lubricant and the compression process does not produce any pollution. Therefore, the compression purity can reach 99.999%. Industrial diaphragm compressor is especially suitable for the compression, transportation and bottling of high-value rare gases and highly corrosive, toxic and harmful, flammable and explosive, radioactive gases.
Advantages of GL447 Series Diaphragm Compressor:
1. The L-type membrane press has two-stage exhaust. The first-stage cylinder is vertical and the second-stage cylinder is horizontal. The two cylinders are perpendicular to each other and form an L shape.
2. The gas does not come into contact with any medium. Oxygen diaphragm compressor is suitable for compressing rare and high-purity gases.
3. Oxygen diaphragm compressor has good sealing, no leakage, and no oil pollution. It is the first choice for compressing toxic and harmful, flammable and explosive gases and special gases.
4. The new membrane cavity curve improves the volumetric efficiency of the Nitrogen diaphragm compressor and increases the life of the wearing parts diaphragm and air valve.
5. Oxygen diaphragm compressor has a fully functional independent oil pump station, which provides stable pressure, clean quality, and fully cooled lubricating oil for compressor lubrication and cylinder work.
6. The overall structure of the Oxygen diaphragm compressor is compact and reasonable, which facilitates the transportation, installation and maintenance of the equipment; it operates smoothly and reliably, with small vibration and low noise.
Industrial diaphragm compressor specifications:
When pre-selecting our company's products or making inquiries, please provide the product usage requirements:
1. Intake air pressure and intake air temperature.
2. Exhaust pressure.
3. Volume flow.
4. Compressed media.
5. Relevant usage requirements.
6. When compressing special media, data on the composition and physical and chemical properties of the media should be provided.
